Formulas

The formula editor is a powerful tool within our No-Code platform that allows you to create custom formulas. These formulas can integrate text, functions, and enable the display of dynamic data such as variables, calculations, table data, images, and more.

Accessing the Editor

Certain component and action properties support formulas, typically when the property expects text. For example, the Text property of the Label Text component.

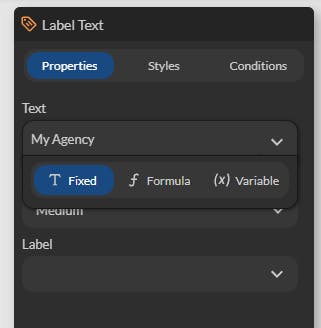

Click on the menu to the right of the property to view all available options. Here, the Text property can be populated from:

A fixed text (without a variable)

A formula

A variable

⁠

Select Formula to access the formula editor.

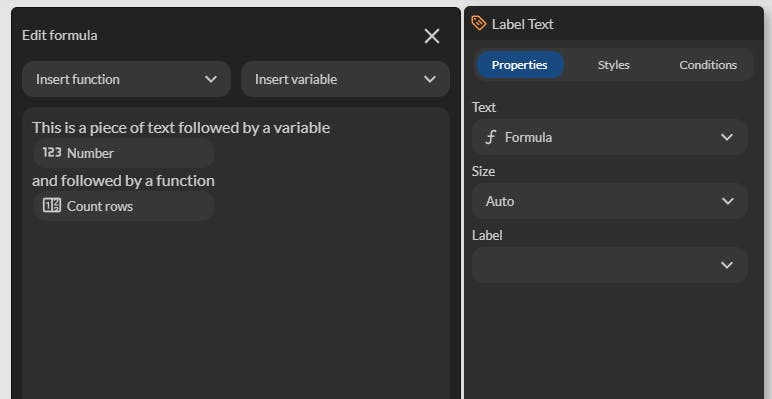

Formula Editor

The formula editor allows you to combine text with contextual data. To do this, simply enter the text and drag and drop the required functions.

For example: “You have ordered [Count rows] products.” Here, [Count rows] represents a dynamic data point (the result of a function) that calculates the number of rows from a table.

⁠

Fonctions

Fonctions

Categorie

Description

Examples

Condition

Allows displaying text if a condition is true

IF THEN

IF THEN_ELSE

Number

Displays, generates, and calculates a number

AMOUNT

CALCULATE

RANDOM

Date

Allows displaying a simple date, calculating a duration between two dates, and performing date calculations

Current date & time

Duration from today

Add

Substract

Text

Allows transforming a text, searching for, and replacing a pattern in a text

Text

Lowercase

Uppercase

Capitalize

Concatenate

Substring

Replace

Split

Data

Displays the result of an aggregation on tables

Count rows

Maximum in rows

Minimum in rows

Average in rows

Sum in rows


Displays an image. The path must be complete (absolute)


Geolocation

Displays the distance between the GPS position or between two positions

Distance from position

Distance

Payment

Displays a cart and details

Print Cart

Cart amount

JSON

Allows searching for information in a JSON message

JSON Query

There are no rows in this table

⁠

Formats

Formats

Format

Description

Examples

Text

Formats the data as text

Please scan your barcode

Whole number

Formats the data as an integer. Decimal numbers are truncated (ignored).

2.2 => 2

077 => 77

123.45 => 123

Number

Formats the data as a decimal number. The format supports a specific number of decimals and a unit. If the specified symbol is a dollar ($), the dollar symbol appears before the number.

1.2 => 1.20 €

12.23567 => 12 km

34.3654 => 4452.3 °

12.32 => $12.32

Currency

Formats the data as an amount with currency. The number is displayed with 2 decimal places.

0.2 => 0.20€

5.0 => $5.00

Distance

Formats the data as a distance The most appropriate unit is used automatically.

5.2 => 5.2 m

85200 => 85.2 km

Duration

Formats the data as a duration The most appropriate unit is used automatically or can be manually selected.

5.2 => 5.2 s

600 => 5 m

Rich text

Displays HTML code

<i>Italic</i> => i

There are no rows in this table

⁠
