Screen sequence editor

This editor allows you to link the screens of your mobile application based on user interactions, such as button clicks and other graphical components like lists. You will also learn how to set the startup screen of your application.

Linking screens

To create smooth navigation in your application, follow these steps:

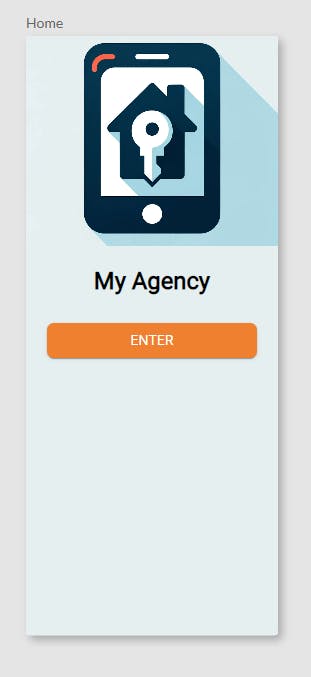

Add an interactive component

Add a graphical component (for example, an Enter button) to your screen as shown below.
⁠
⁠
⁠

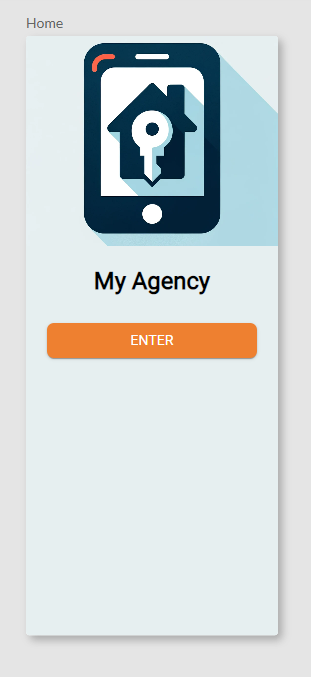

Set a screen transition

In the Flow tab
Select the button component
Drag the right handle to the destination screen
⁠
⁠
⁠

Undo a screen transition

In the Flow tab
Select the button component
Select the link
Drag the end of the link outside the screen

⁠
⁠
⁠

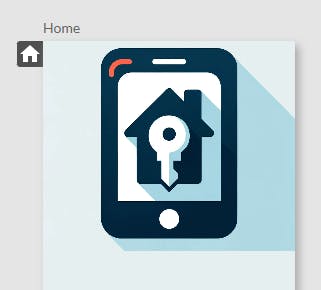

Set the startup screen

To set the screen that appears when the application is launched:
Go back to the screen sequence editor.
Locate the screen you want to set as the startup screen.
Click the home icon to the left of that screen.
⁠
⁠
⁠

Test your navigation

It is important to test your application's navigation to ensure everything works as expected.
Use the simulator mode from the Simulation tab.
Interact with the screens you have configured.
Check if the navigation meets your expectations.

Tips and tricks

Ensure that the transitions between screens are logical and intuitive for the user.
Use clear screen names to simplify navigation configuration.
Regularly test changes to avoid navigation errors.
